Evolution Gear ATACR 1-8X24mm First Focal Plane LPVO Mil Spec Ver. W NF with Mount
Evolution Gear ATACR 1-8X24mm First Focal Plane LPVO Mil Spec Ver. W NF with Mount
ATACR 1-8X24mm First Focal Plane LPVO Mil Spec Scope

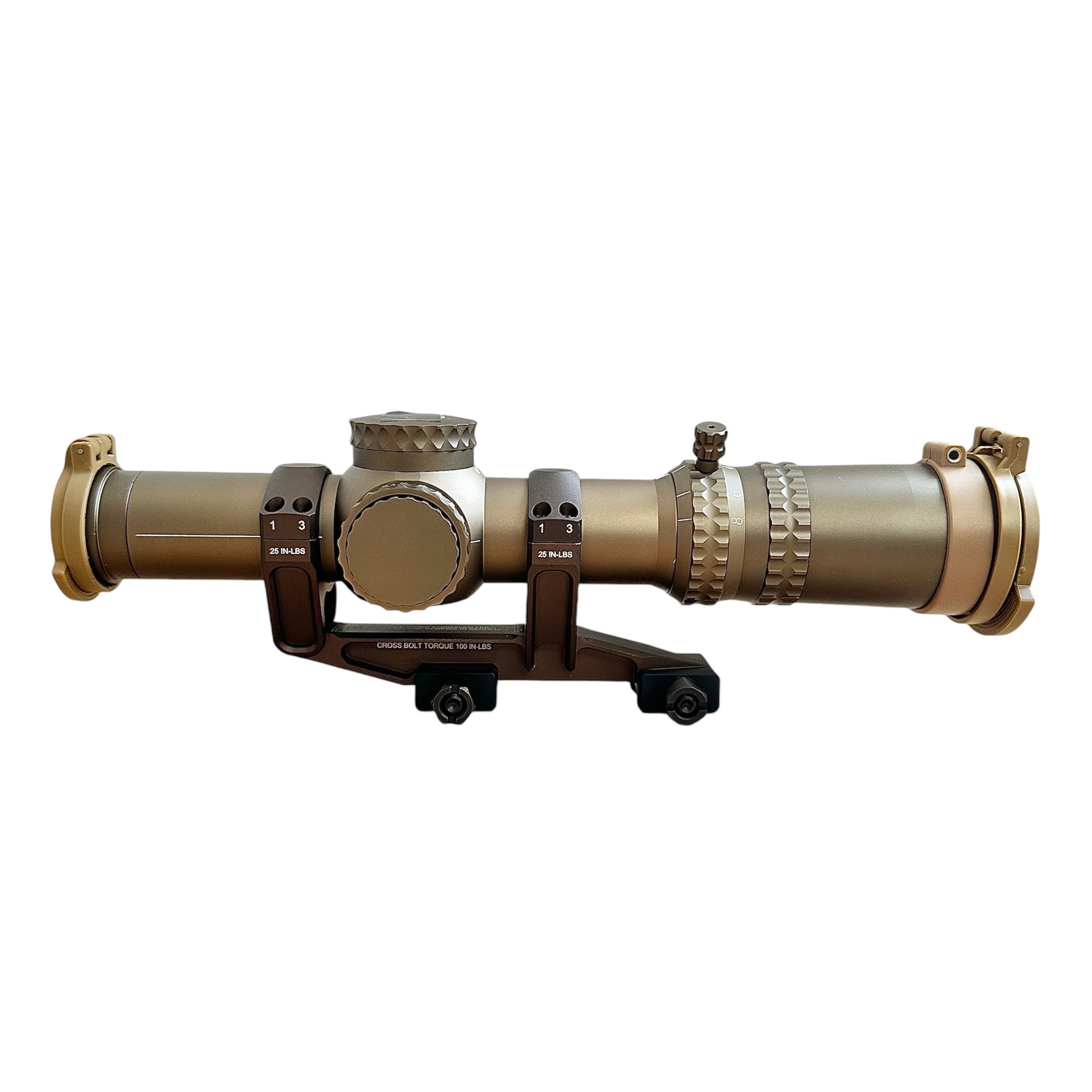

with 34mm scope mount
Experience precision and durability with the ATACR 1-8×24 riflescope, designed to be the ultimate low-power variable optic. Whether for close-range or long-distance shooting, this riflescope offers unparalleled clarity and performance.
-

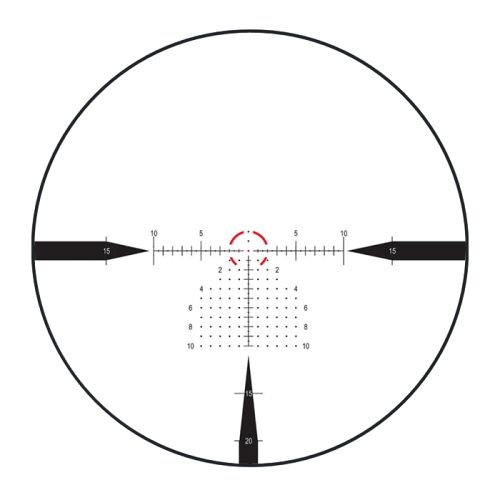

Superior Optics: Equipped with pristine ED glass, providing sharp, clear images and bright daylight illumination. The intelligent reticle ensures accuracy across all magnification levels.
-
Rugged Build: Engineered to withstand harsh conditions, the ATACR riflescope features an IPX7 waterproof rating, nitrogen-filled body, and is built to hold zero and recoil on firearms with calibers 5.56/7.62.
-
Precision Adjustment: The first focal plane (FFP) reticle allows for consistent holdovers, while the 34mm body tube provides a substantial internal adjustment range of 30 MRAD for both elevation and windage. The capped, finger-adjustable elevation feature adds to the ease of use.
-
Wide Field of View: At 1x magnification, the field of view is equivalent to open sights, offering 96.1 ft/32.0 m at 100 yards, making target acquisition fast and accurate even at close range.
Specifications:
- Magnification Range: 1-8x
- Focal Plane: First Focal Plane (F1/FFP)
- Body Tube Diameter: 34mm
- Weight: 21.0 oz / 595 g
- Click Value: 0.1 MRAD
- Internal Adjustment Range: Elevation: 30 MRAD | Windage: 30 MRAD
- Eye Relief: 3.7 in / 95 mm
- Field of View @ 100 yd/m: 1x: 96.1 ft / 32.0 m | 8x: 13.1 ft / 4.4 m
- Illumination: Daylight visible, externally adjustable
Battery Replacement
The battery is located beneath the illumination adjustment (1-8x24) or parallax adjustment. The battery cover is removed by turning the illumination adjustment or parallax adjustment counter-clockwise until the cover comes off. Replace depleted batteries with CR2032. Install the battery with the positive (+) side up. Turn off the illumination when not in use to prevent depletion of the battery.
